1. The Important Role of the Sewage Suction Pump

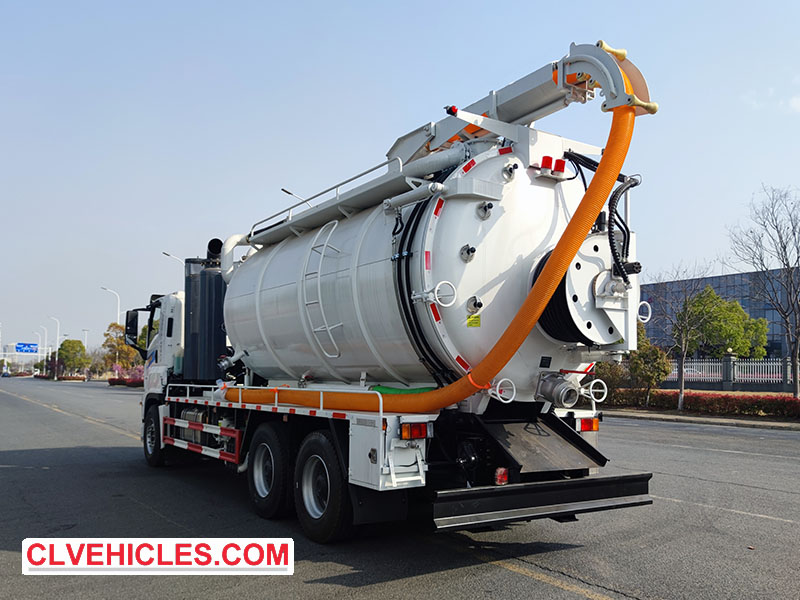

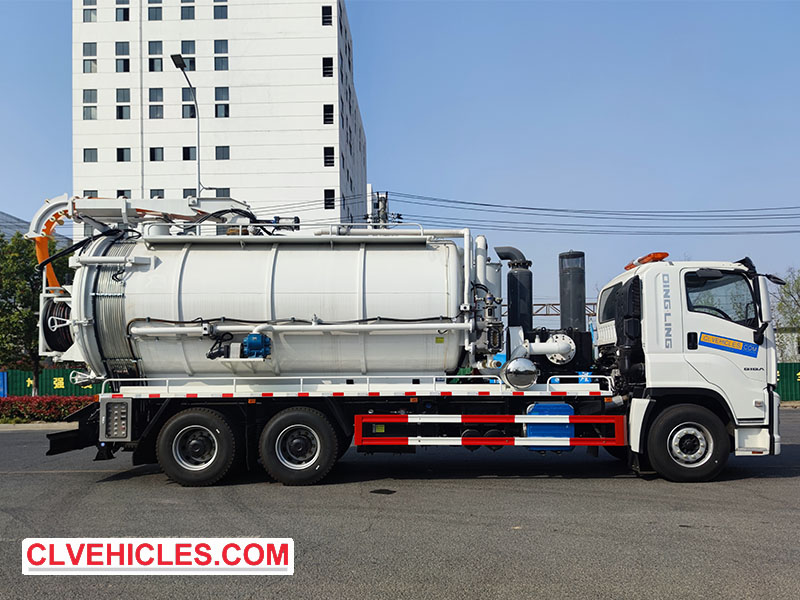

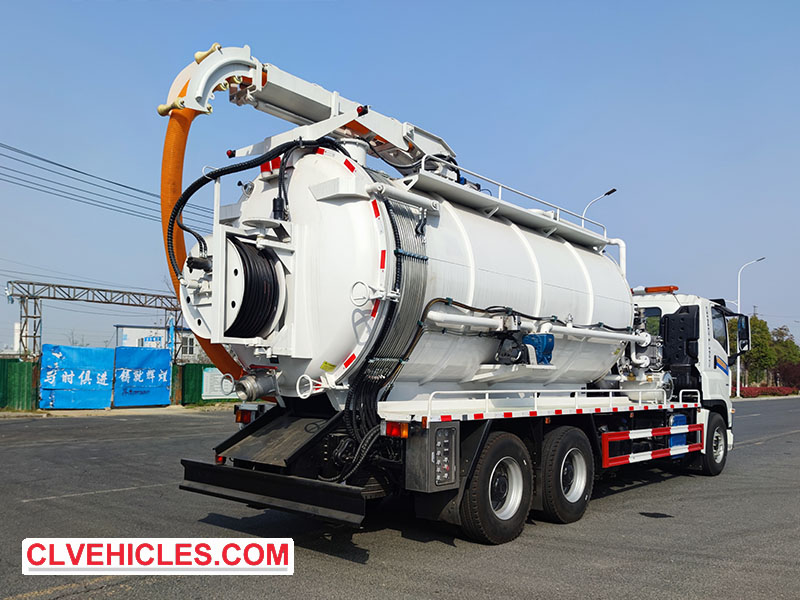

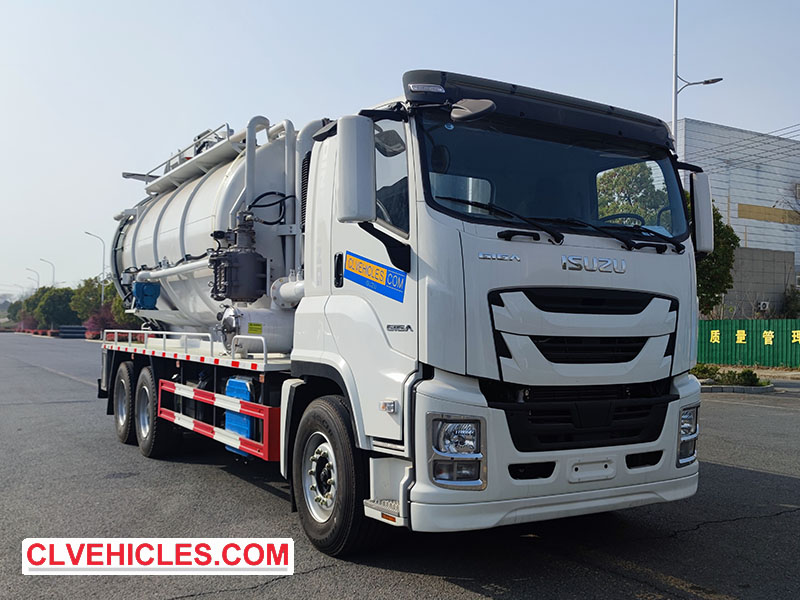

The Isuzu vacuum truck is a professional sanitation vehicle, renowned for its self-priming and self-unloading capabilities, fast working speed, and convenient transportation. It plays a crucial role in the suction, loading, and unloading of urban sewage. The truck consists of two main parts: a dedicated sanitation chassis and an upper body. A key component in the upper body is the sewage suction pump. Every suction and discharge operation relies on this pump, making it the core of the vacuum truck.
2. The Working Principle of the Sewage Suction Pump
The pump's main power comes from the truck's engine. Power from the engine reaches the vacuum pump through the gearbox, power take-off, and driveshaft. During sewage suction, the vacuum pump draws air out of the sealed tank, creating negative pressure. Then, the higher atmospheric pressure outside the tank forces sewage into the tank through the suction pipe. During discharge, the vacuum pump pushes air back into the tank, using internal air pressure to expel the waste. This simple and efficient cycle enables fast and reliable operation.
3. Two Common Pump Types: Vacuum Oil Pump (Rotary Vane)
The two most widely used sludge suction pumps on vacuum trucks are vacuum oil pumps and water circulation pumps. Vacuum oil pumps, also known as rotary vane vacuum pumps, are a type of coarse vacuum pump that can operate independently or as a booster for more advanced pumps. Their main characteristics include:
- Relatively high vacuum performance.
- Isothermal gas compression—without exhaust valves or friction surfaces, enabling it to handle dusty gases, condensable gases, and water-gas mixtures.
- Simple structure, low manufacturing precision requirements.
- Anti-oil return device, easy to restart after shutdown.
- Oil mist collector at the exhaust port, preventing environmental pollution.
- Maintains high speed even at low pressures.
These characteristics make vacuum oil pumps highly versatile and durable.
4. Alternative: Water Circulation Pump
Water circulation pumps are more expensive but have significant advantages. Their working principle is based on eccentrically mounted vanes within the pump body, with a suitable amount of water as the working fluid. As the vanes rotate, the water is thrown outwards by centrifugal force, forming a closed water ring that matches the shape of the pump chamber. This pump relies on volume changes within its chamber to achieve suction, compression, and exhaust, thus completing the sewage unloading process. The pump's advantages include:
- Long service life and compact size.
- High efficiency and smooth operation.
- Brushless operation, zero pollution, electronic commutation.
- High-performance ceramic shaft with excellent precision and wear resistance.
5. Summary: Choosing the Right Pump for Your Isuzu Truck
Both pump types have proven effective for sewage suction trucks. Vacuum oil pumps are cost-effective, versatile tools suitable for most urban sanitation tasks. While water circulation pumps are more expensive, they offer superior lifespan, cleanliness, and stability for demanding applications. Understanding these differences helps operators maintain optimal performance, reduce downtime, and extend the service life of their Isuzu vacuum trucks. Proper pump selection and regular maintenance ensure reliable and efficient sanitation operations.
