1. Introduction and Key Differences from ISUZU Water Tank Fire Trucks

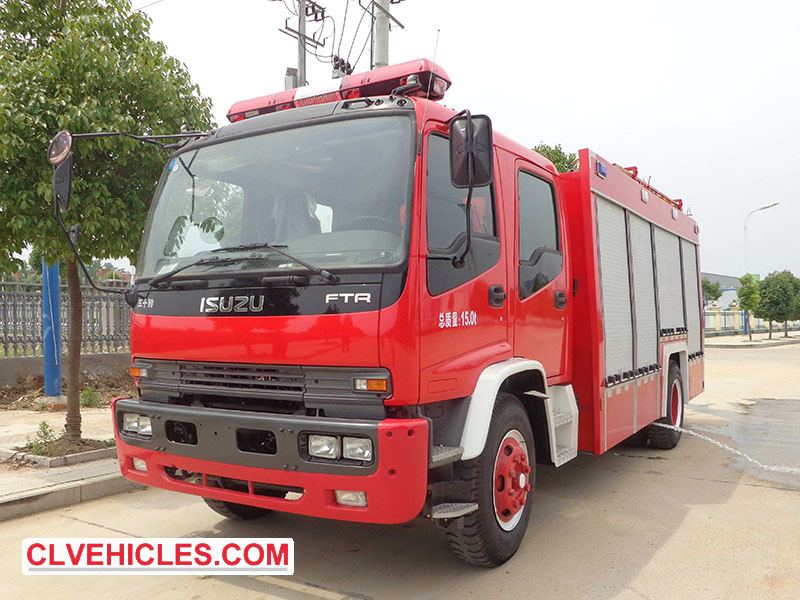

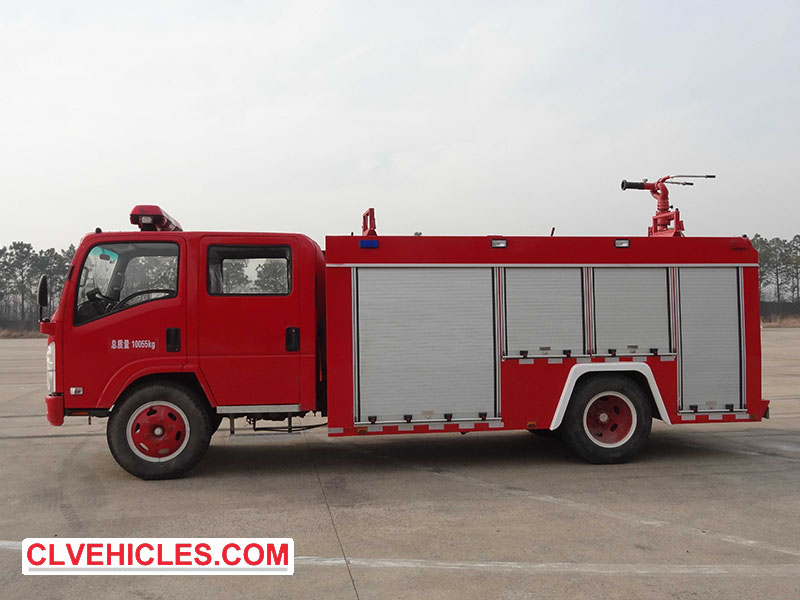

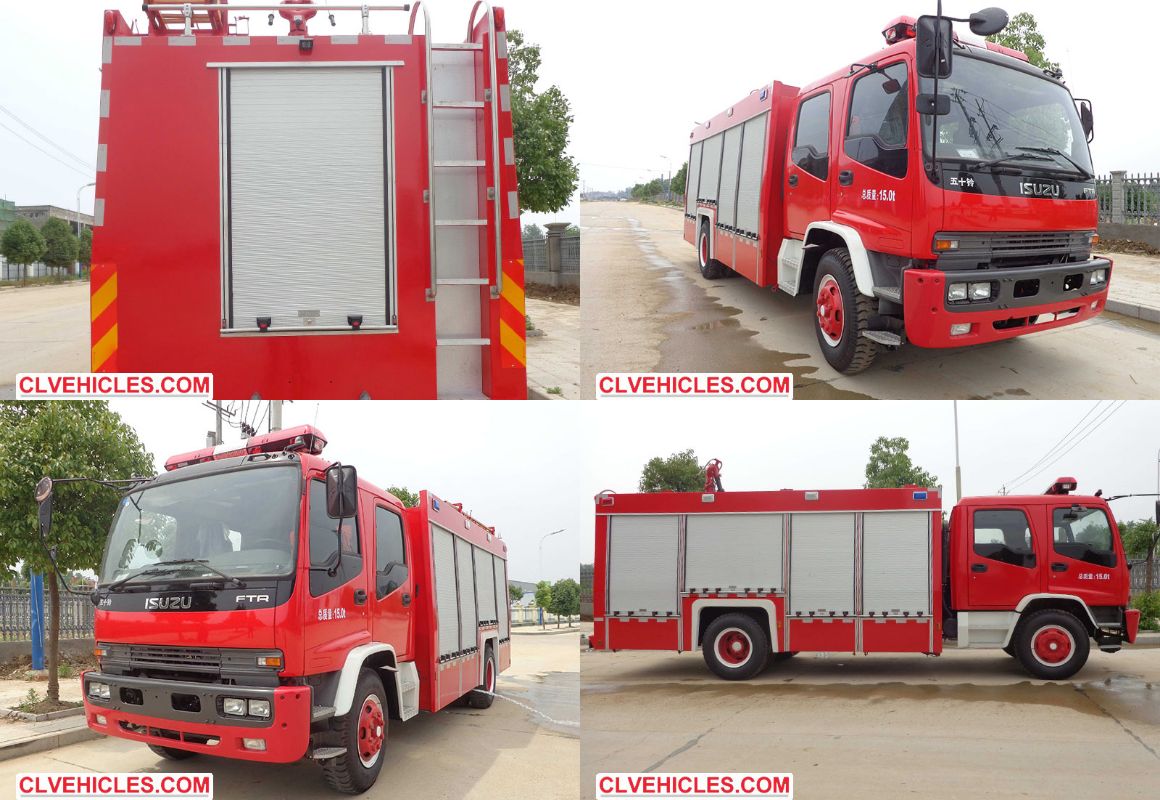

ISUZU foam tank fire trucks are specifically designed for extinguishing fires involving flammable liquids (such as oil, fuel, and chemical fires), in which water alone is ineffective and may even be dangerous. Structurally, it is developed from a traditional water tank fire truck but with the addition of a dedicated foam extinguishing system. This means that foam extinguishing is the primary mode, while water serves as an auxiliary agent. The essential difference lies in the inclusion of a foam liquid tank and a foam proportioning system—components not present on standard water tank fire trucks. These additions enable the vehicle to produce and discharge flame-retardant foam, making it indispensable in industrial and airport firefighting scenarios.
2. Overall Composition and Shared Components
Modern ISUZU foam fire trucks are an integration of multiple systems. Their main components include: a commercial chassis, crew compartment, main water/foam tank, pumps and piping, power take-off and transmission, auxiliary cooler, additional electrical systems, firefighting equipment and fixtures, a foam proportioner (or mixing system), and a dual-purpose air-foam-water monitor. Many of its components—such as the chassis, crew compartment, tank, power take-off, cooler, electrical system, and standard firefighting tools—are the same as those on a water tanker fire truck. However, the core of the vehicle is the dedicated foam hardware, which transforms the fire truck from a simple water carrier into a multi-functional foam generation platform.
3. Core—Foam Proportioning System
The foam proportioning system is the core technology of a ISUZU foam fire truck. Its function is to precisely mix water and foam concentrate at a fixed ratio (usually 97:3 or 94:6, i.e., the ratio of water to foam) before the mixture is pumped to the foam generating unit. Based on their operating principles, these mixing systems are mainly divided into two categories: ring pump proportioning systems and pressure-balanced proportioning systems. Each system has a unique design philosophy, operating characteristics, and cost impact, which fire departments must carefully consider when selecting one.
4. Ring Pump Type
Design, Operating Principle, and Wide Applications The ring pump type, also known as a bypass or circulation loop system, is a negative pressure (Venturi type) proportioning mixer. Its key feature is the connection of a loop pipe between the discharge and suction pipes of the water fire-fighting circuit, with the proportioning mixer installed on this loop pipe. When water flows through the loop, the resulting pressure drop creates a suction effect, drawing foam concentrate into the water flow, thus achieving the required mixing without a separate foam pump. This design boasts a simple and robust mechanical structure and is significantly less expensive than the pressure-balanced type. Therefore, the loop pump system is widely used in domestically produced foam fire trucks in many regions, providing an economical and efficient solution for a wide range of municipal and industrial fire-fighting needs.
5. Pressure-Balanced System and Overall Operation Flow
In contrast, the pressure-balanced proportioning system uses a dedicated foam pump and pressure-balancing valve to maintain a constant pressure difference between the water and foam flow, ensuring precise mixing regardless of pump speed or discharge pressure. This system offers higher accuracy and greater flexibility for variable flow rates, but also comes with higher cost and complexity. Regardless of the mixing principle used, the final operational sequence remains the same: the pump draws water from the storage tank, the mixer mixes the foam concentrate according to the prescribed ratio, and then the resulting foam solution is delivered via hose to handheld foam nozzles or roof-mounted sprayers. In this process, air is drawn in to create finished foam, which is then sprayed onto the fire. Understanding these structural features allows firefighters and fleet managers to select, operate, and maintain appropriate foam trucks based on specific risk conditions.
